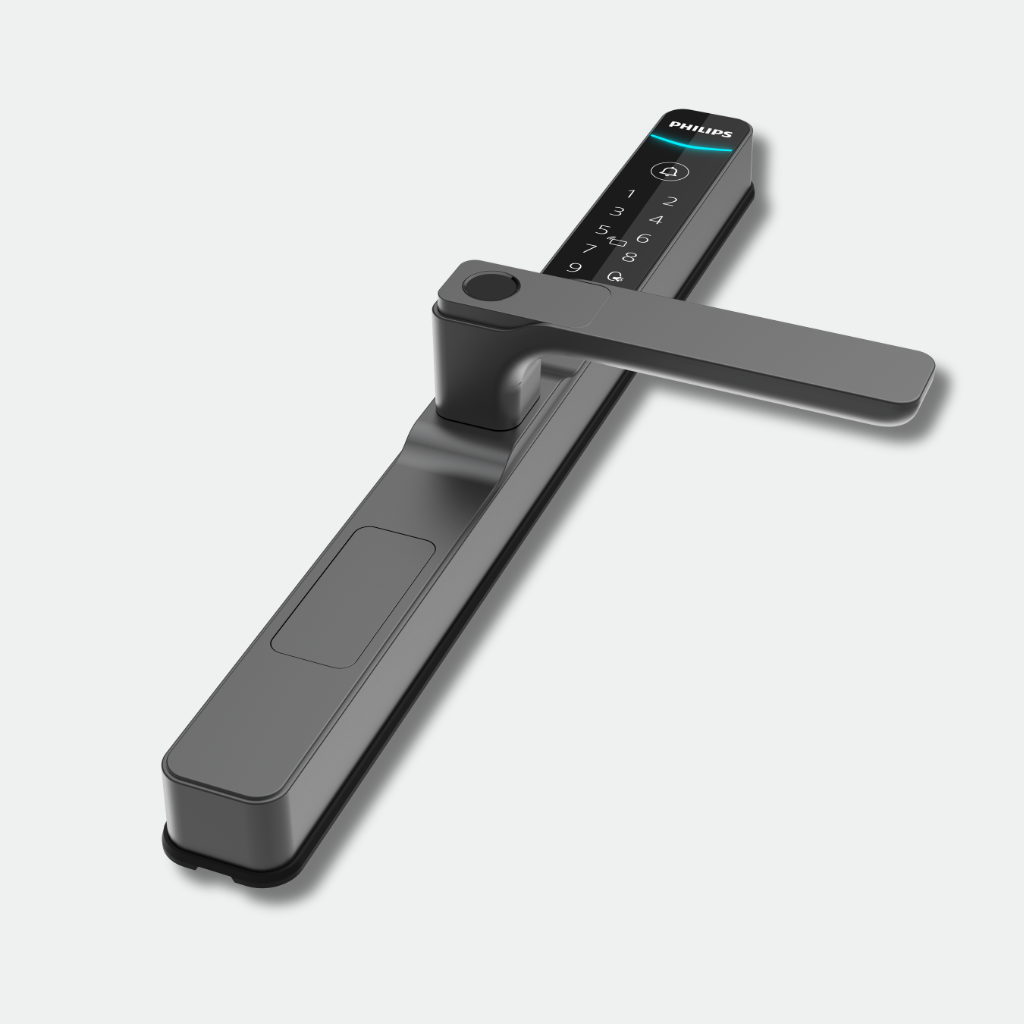

Philips 6000 Series Slim Smart Door Lock | 32mm Narrow Profile for Aluminum & Sliding Doors | DDL611S-5HB

The Philips EasyKey DDL608-5HWS Smart Lever Door Lock is a slim-body smart lock specially engineered for narrow-frame and aluminium doors, delivering advanced security without compromising door aesthetics. Featuring a 43 mm ultra-slim profile, this lock fits perfectly on aluminium alloy, framed, and narrow stile doors where standard smart locks cannot be installed. With Wi-Fi connectivity via the Tuya Smart App, users can remotely manage access, view unlocking records, and generate temporary PIN codes anytime. Built with a C-grade security lock cylinder, IP65 dust and water resistance, and multiple unlocking methods including fingerprint, PIN code, and mechanical key, the DDL608-5HWS is an ideal solution for modern apartments, offices, and residential entrances in Pakistan.

• 32mm Ultra-Slim Profile: Engineered specifically for narrow-stile profiles, thermal break aluminum, UPVC, sliding patio frames, and slim glass-framed wooden doors.

• Extreme Climate Proofing (–25°C to 70°C): Rigorously tested under 5-hour thermal stress cycles to ensure flawless operational reliability in direct sun exposure and harsh climates.

• 5 Versatile Unlocking Methods: One-touch semiconductor fingerprint recognition on handle, backlit PIN code, encrypted key tag (RFID), Philips smart key, and mechanical override key.

• Philips Home Access App Integration: Connect via dedicated gateway to monitor real-time entry logs, receive instant abnormal tamper notifications, and manage door permissions remotely.

• Custom Access Control PINs: Issue temporary 6-hour one-time passwords for cleaning staff or maintenance crews, alongside recurring schedule-based PINs for employees.

• Universal 25mm to 70mm Door Fitment: Specialized narrow-backset mortise mechanism engineered for seamless retrofitting on both sliding tracks and swing-hinged doors.

• Comprehensive Anomaly Security: Built-in sensors trigger loud acoustic on-site alarms and push immediate smartphone alerts upon detected prying, multiple incorrect inputs, or low voltage.

Brand: Philips

Product Series: Philips 6000 Series Slim Profile Collection

Model Number: DDL611S-5HB (DDL611LKPKB/00)

Lock Architecture: Ultra-Slim Lever Handle Smart Mortise Lock

Body Width: 32 mm Slim Stile Profile

Door Thickness Compatibility: 25 mm – 70 mm (0.98" – 2.75")

Supported Door Types: Aluminum Frame Doors, Thermal Break Aluminum, Sliding Patio Doors, Framed Glass, UPVC, Slim Wooden Doors

Primary Materials: High-Strength Aerospace-Grade Aluminum Alloy + Tempered Acrylic Keypad

Finish / Color: Deep Space Grey

Unlocking Methods: Semiconductor Fingerprint, Digital PIN Code, Philips Smart Key Tag, Encrypted Card, Mechanical Key

Fingerprint Sensor: High-Resolution Capacitive Semiconductor Fingerprint Sensor on Lever Pivot

Fingerprint Capacity: Up to 100 Fingerprint Profiles

PIN Code Capacity: 1 Master PIN + 20 User PINs + Unlimited App Temporary PINs

Key Tag Capacity: Up to 100 Encrypted Smart Cards

Door Opening Speed: Less than 0.5 Seconds

Anti-Peeping Technology: 20-Digit Virtual Scramble Password Protection

Operating Temperature Range: –25°C to +70°C (Tested for High-Heat Arid Regions)

Operating Humidity: 15% to 93% Relative Humidity (Anti-Condensation Protected)

IP Certification: IP65 Certified

Power Supply: DC 6V (4× 1.5V AA Alkaline Batteries)

Emergency Backup Power: 5V USB Type-C Port (External Power Bank Boost)

Networking Protocols: Bluetooth BLE & Wi-Fi Gateway Connectivity via Philips Home Access App

Alarm Functions: Anti-Prying Tamper Alarm, System Lockout Alarm, Low-Battery Acoustic Alert

Warranty: 2-Year Official Manufacturer Warranty, 1-Year Local Warranty backed by Building Hardware (Est. 1949)
